Product Dimensions 29.50"h x 36"w x 7"d

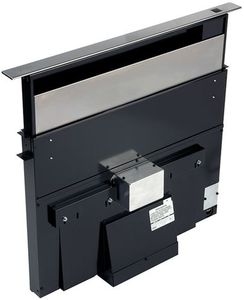

Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or colour. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface.Read More
Space-saving design lets you make the most of precious, under-counter cabinet space. Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use. Blower discharges right, left or down and slides side-to-side to ease installation (insufficient space for built-in ovens). Front access panel allows easy cleaning.
Model 273603 is powered by 500 CFM Interior Blower
Model 637004EX offers your choice of 900 CFM Exterior Blower. (Sold separately.)
Stainless Steel cover standard. Optional cover colours available in White (273601C), Biscuit (273602C), or Black (273623C)
Downdraft units cannot be used with a slide-in range.
General Specs | |
| Width (in.) | 36 |
| Height (in.) | 29.50 |
| Depth (in.) | 7 |
| Collection | Eclipse™ |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 91 |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Downdraft |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Maximum CFM | 500 |
| Vent Location | Front |
| Ventilation Direction | Downdraft |
| Width (cm) | 91.44 |
| Height (cm.) | 74.93 |
| Depth (cm.) | 17.78 |
| Voltage | 120 |
| Amp | 4 |
| Range Hood Features | Retractable |
| Ventilation Type | Ducted |
Overview | |
| Filter Quantity | 2 |
| Filter Type | Aluminum |
| Motor Number Of Speeds | Variable |
| Wattage | 480 |
| Switch Control Type | Rotary Dial |
| Duct Connector Size | 3-1/4" x 10" or 6" Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular |
| Duct Diameter | 6" |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 10" |
